Arty 75H
Fully Automated High Speed Horizontal Flow Wrapper
The ARTY75H is a versatile, low maintenance, horizontal flow wrapper for pillow type applications and offers hi value for the dollar.
Available with fully integrated automatic aligning and spacing infeed Smart Conveyor.
The end users are small and medium corporations in the following industries:
- Bakeries, bread and pastries
- Cookie manufactures
- Confectionery manufacturers
- Contract packagers
- Snack food manufacturers
- Full stainless steel version available
- Numerous attachments available (square bottom bags, gussets, heated hole punch, print registration etc.).
- Complete line integration
- Complete set-up or changeover in just minutes and with no tools necessary.

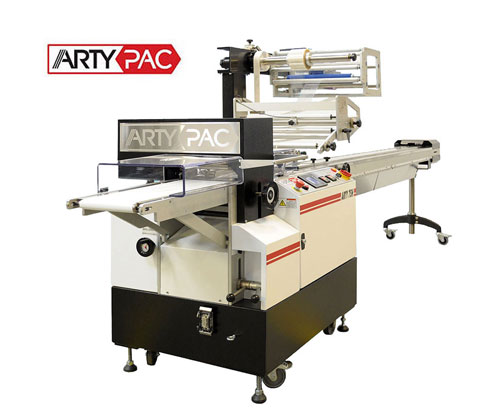

The 75H Horizontal Flow Wrapper
Check out the videos which shows how the ARTY 75H is the most easy-to-use and reliable machine on the market (click a link below).
- Simple, user-friendly flowrapping industrial system
- New 75H Servo-1
- Horizontal flowrapper for pastries 'Le PÂTISSIER'
- 75H Candies Short 2012
- Flowrapper bagging Single Serve Cup Coffee
Standard Features
| Industry leading "teacher" Touch Screen HMI. |
| 4 Minute Set-ups |
| Quick loading, self-centering, reel holder. |
| Adjustable bag forming box. |
| Cut-off length adjustment by means of a hand wheel and a mechanical variator or optional Servo Drive. |
| Fin seal folding to the left or to the right. |
| Variable speed by means of a potentiometer. |
| PLC controlled |
| Digital PID temperature controllers. |
| Jaws drive torque limiter with safety switch and reset hand wheel. |
| Lugged infeed conveyor equipped with quick re-lease electromagnetic clutch. |
| Lugged infeed conveyor equipped with quick re-lease electromagnetic clutch. |
| Easy print registration. |
Optional Features
| Mobility: the machine can be equipped with four castors and four legs. |
| Inclined exit belted conveyor. |

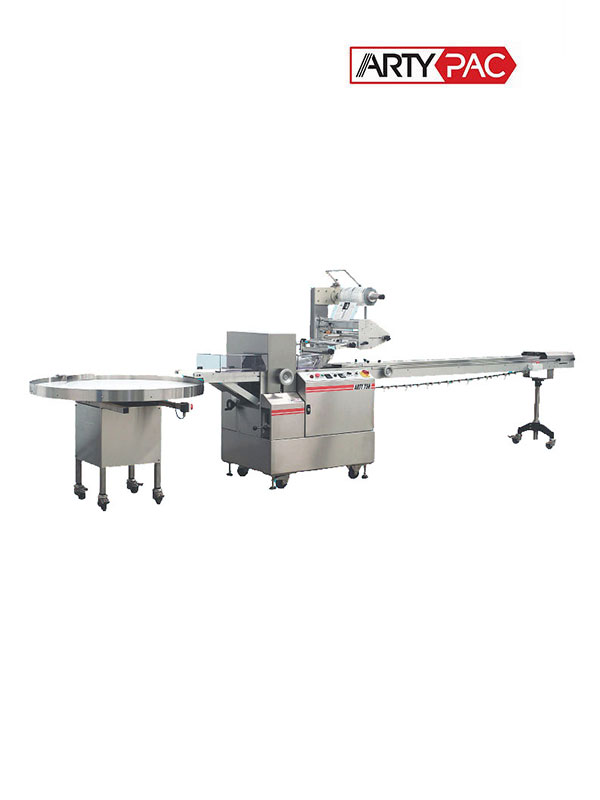

| Collating turntable. |
| Second reel holder. |
| Punching displaying holes. |
| Opening notch punch. |
| Gusseting attachment. |
| Flat bottom bag attachment. |
| Gas flush. |
| Static eliminators. |
| Date coders and inline printers. |
