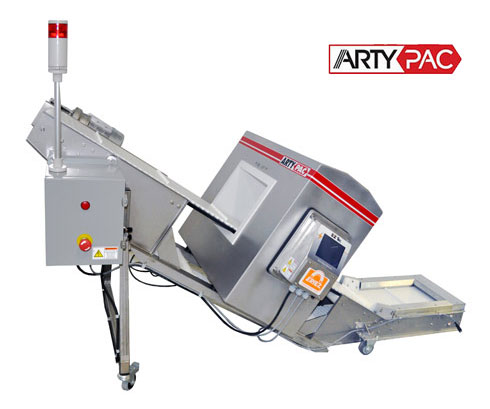

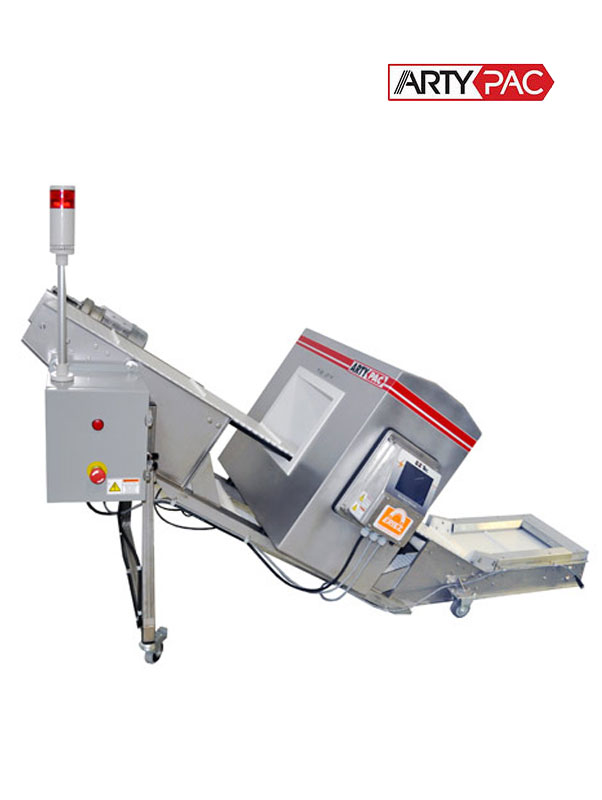

Metal Detectors (DSP)

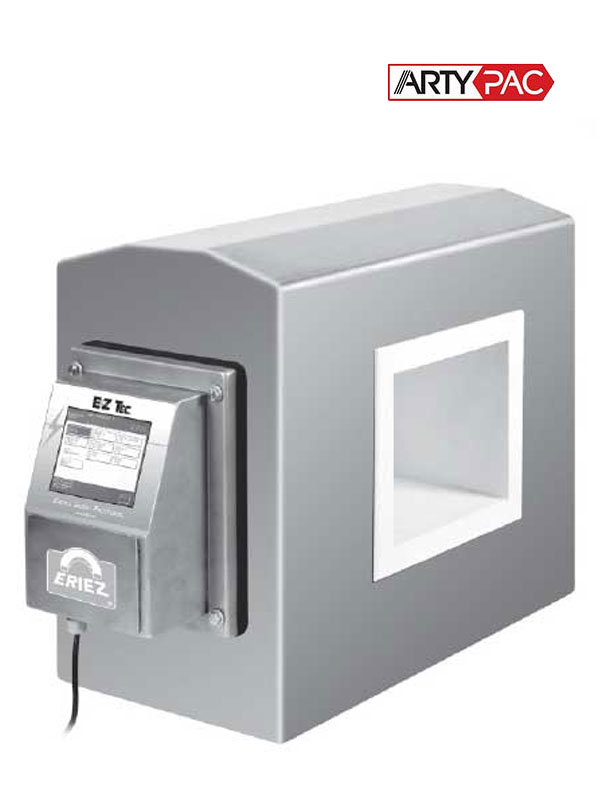

Eriez E-Z DSP METAL DETECTORS are extremely sensitive instruments used to detect ferrous, non–ferrous and stainless steel metal contaminants.

For conductive products such as fresh meats, cheeses, fruits, etc., setting up the metal detector is accomplished through the Auto-Setup Menu.

Highly sensitive.
Easy to use
Quick recovery
Touch-Screen Interface
Angled control panel
Stainless steel construction
Reject Confirmation
50 different product selections
NEMA 4X rated

Standard Features

Stainless steel construction

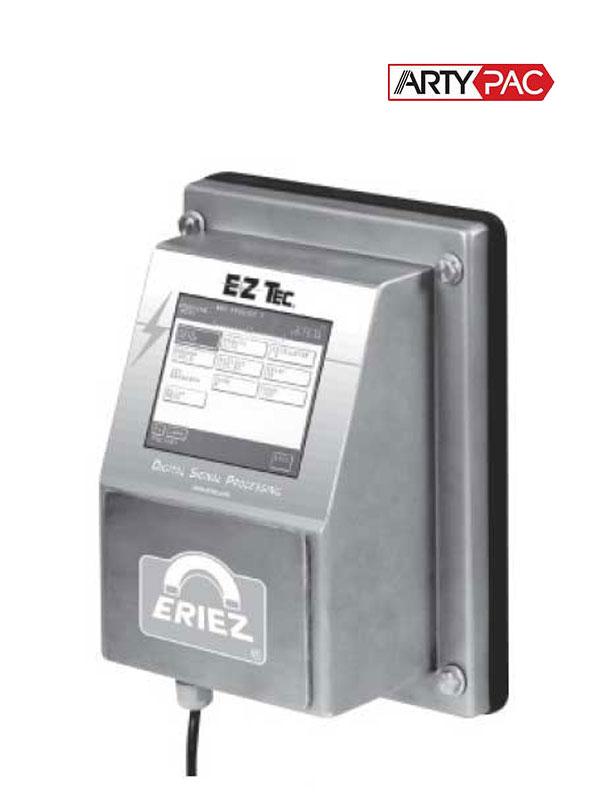

Angled control panel for easy viewing and accessibility to metal detector settings.

Quick recovery after detection of large tramp metal.

100–foot (30 m) remote control capability.

Easily serviceable boards with electronic diagnostics.

Various inputs and outputs for controlling reject devices.

Auto–Setup, Self-checking, Calibration verification etc.

User specified self checking and calibration verification.

Quick recovery after detection of large tramp metal.

50 different product selections can be stored with each product selection defining such parameters as sensitivity, gain, phase, product description and relay states.

The internal memory holds full details of the last 100 rejects for visual review, counting up to 10,000 rejects. Reports may be uploaded to a computer via the RS-485 interface port.

Technical Data

Power supply	120-240V, 48-62 Hz
Remote monitoring	RS-485 output
Product Speed	3 to 8000 FPM (.02 to 40 mps)
Remote control	100' (30m)
Product selection up to	50
Reject time	.05 to 60 seconds
