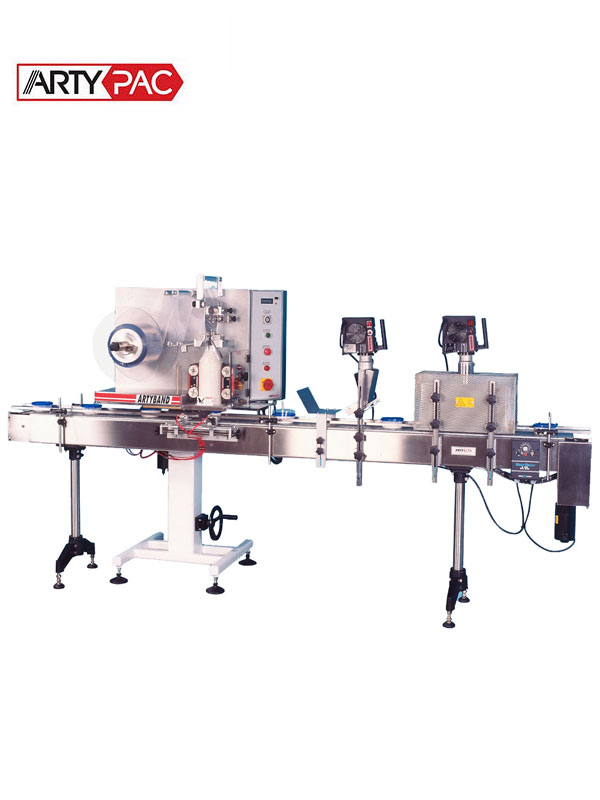

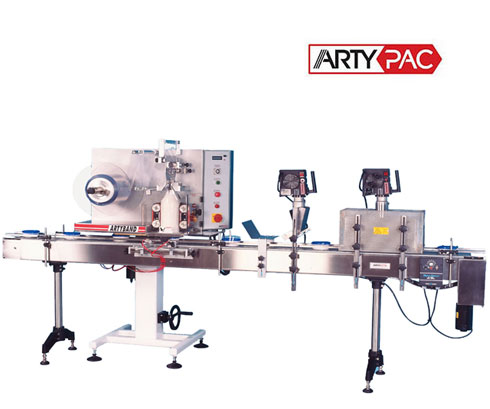

Artyband 70
Fully Automated High Speed Shrink Band Applicator
Innovative, the ARTYBAND 70, is fully automated high speed Shrink band applicator machine that incorporates a new technology which makes it one of the most easy-to-use and reliable machine on the market.
Three standard models available covering a wide variety of tamper evident and labeling applications with Precision and Versatility.

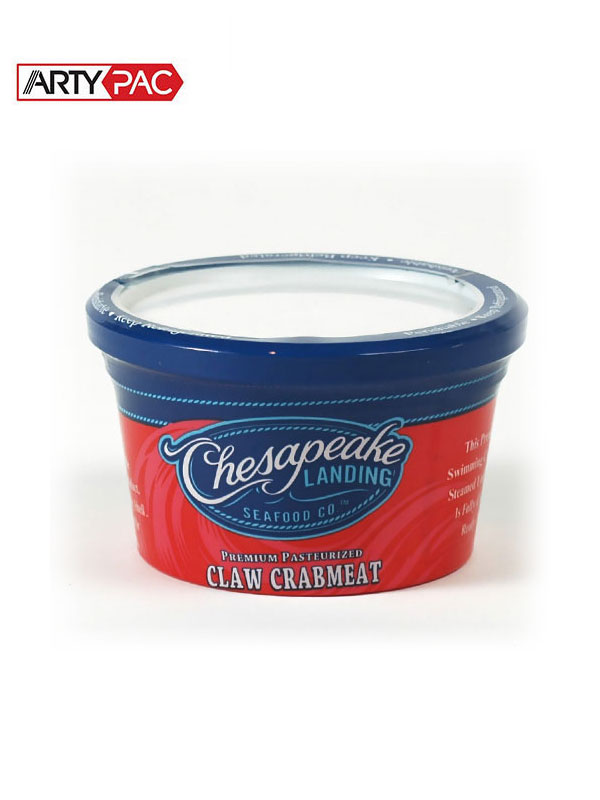

The ARTYBAND 70 is a simple-to-use and cost efficient banding machine to cut and apply shrinkable bands on:
- Bottles
- Jars
- Candles
- Plastic tubs, and other containers.
- All functions are PLC controlled
- Equipped with a user friendly touch screen interface
Standard Features
| One quick loading motorized reel holder. |
| Band feeding system by means of side belts running against a self centering mandrel. |
| Feed belts driven by two stepper motors, providing fast feed and accurate lengths. |
| Programmable lengths from 1/4" up to 12". |
| Pneumatically operated cut-off knife. |
| Polycarbonate safety guards with safety switches. |
| Tool-less indexing system pneumatically operated. |
| Optical product detector. |
| Programmable controller. |
| Speeds up to 90 bands per minute, depending on product size, indexing system and length of band. |
| Tubular steel stand protected with electrostatic paint. |
| Adjustable height by means of a hand wheel. |
| Four castors or optional leveling pads. |
| Print registration optional. |
Optional Features
| Hi efficiency shrink tunnels and conveyors. |
| All stainless steel |
