TORNADO 600
Fully Automated High Speed Auger Filler
The TORNADO 600 is an innovative auger-filler using VECTORMOTION™ technology to drive the filling screw.
It can be used as a stand-alone unit or integrated with many packaging systems such as: horizontal and vertical form-fill-seal machines; cartoning machines; conveyors etc.
Programmable speed of feed screw to obtain the ideal conditions depending on product type and fill size.
- All functions are PLC controlled
- Nema 4 control panelwith programmable operator interface
- Maintenance-free unit
- Continously Variable speed with a touch of a button
- Durable electrostatic powdered paint and stainless steel contact parts
- Full stainless steel version available
- Programmable speed of feed screw.
- Dust proof enclosure
- 99 memory locations to store and retrieve product settings.

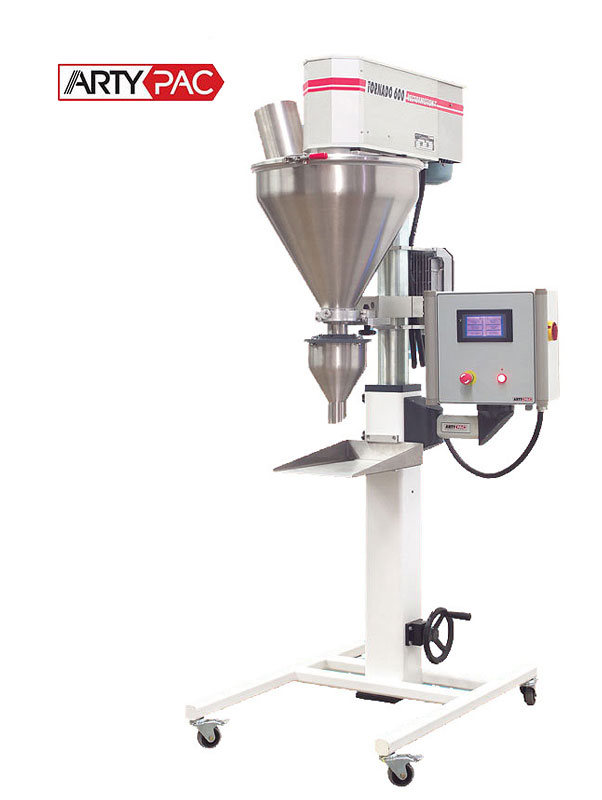

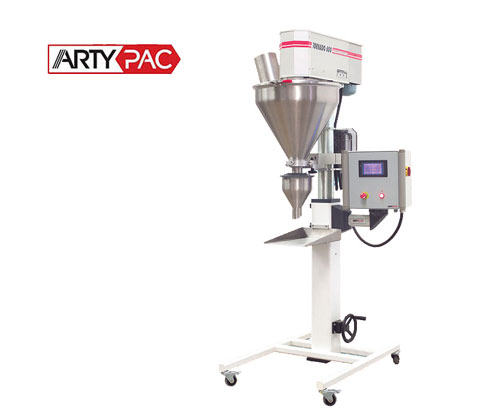

The TORNADO 600 Auger Filler
Check out the video which shows how the TORNADO 600 is the most easy-to-use and reliable machine on the market.
Standard Features
| Stainless steel hopper, 16 gallons (60 liters) capacity. |
| Low speed motorized dual agitator. |

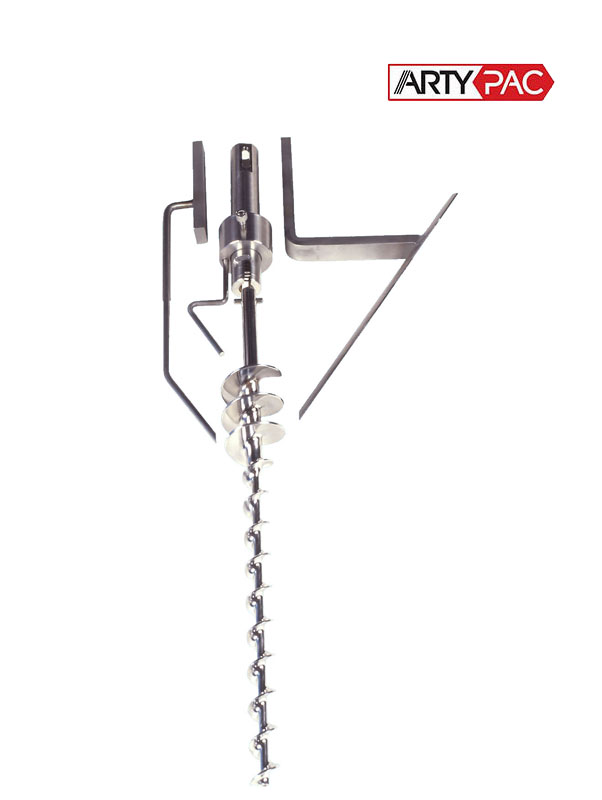

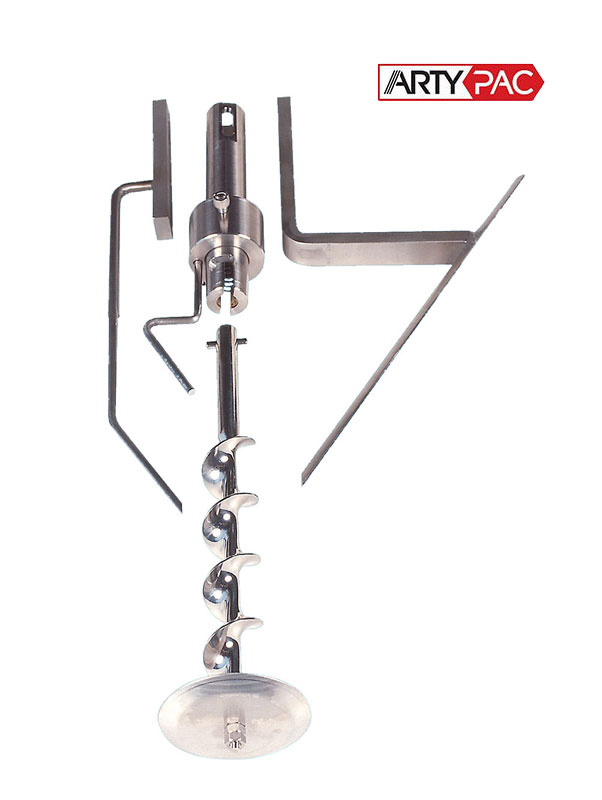

| VECTORMOTION™ drive system to drive the feed screw. |
| Continuously programmable variable speed of feedscrew, from 220 to 1300 rpm. |
| Speeds up to 75 cycles per minute. |
| Nema 4 control panel with programmable operatorinterface. |
| Programmable controller. |
| Maintenance free unit. |
| Stand alone unit mounted on a tubular steel standprotected with electrostatic paint, adjustable inheight by means of a hand wheel. |
| OEM unit mounted on a flanged column. |
Optional Features
| Four castors or leveling pads. |
| Stainless steel base. |

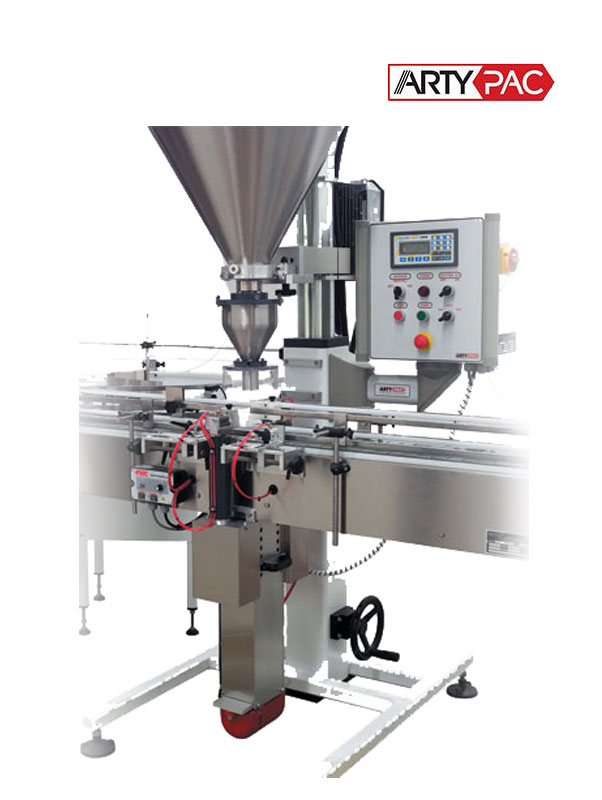

| Indexing units |
| Bottom-up-filling unit |

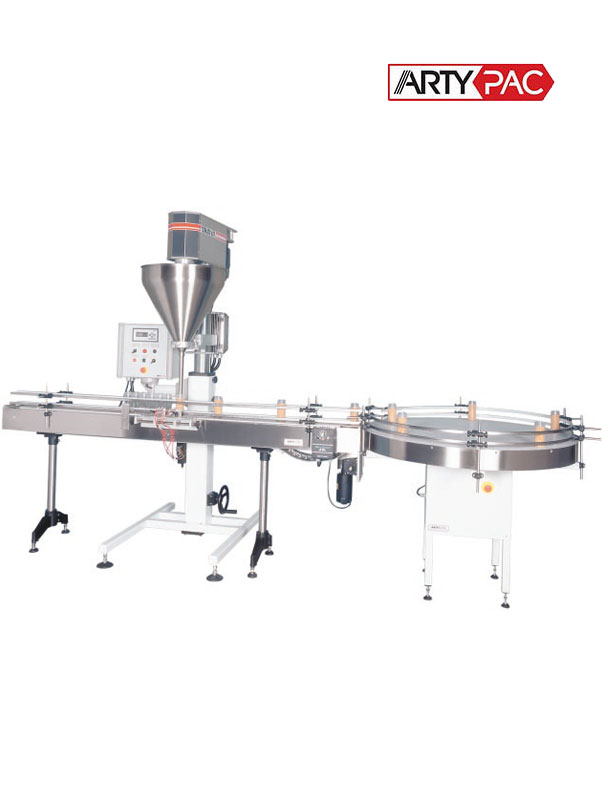

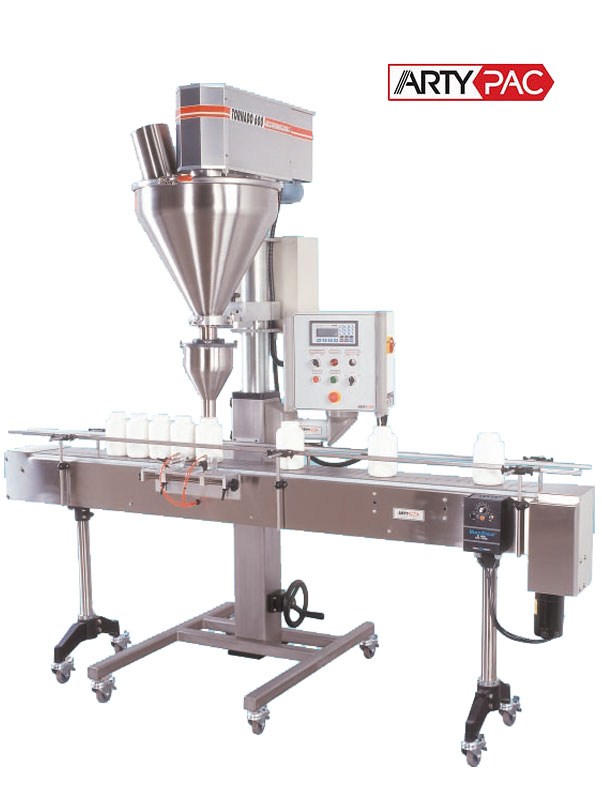

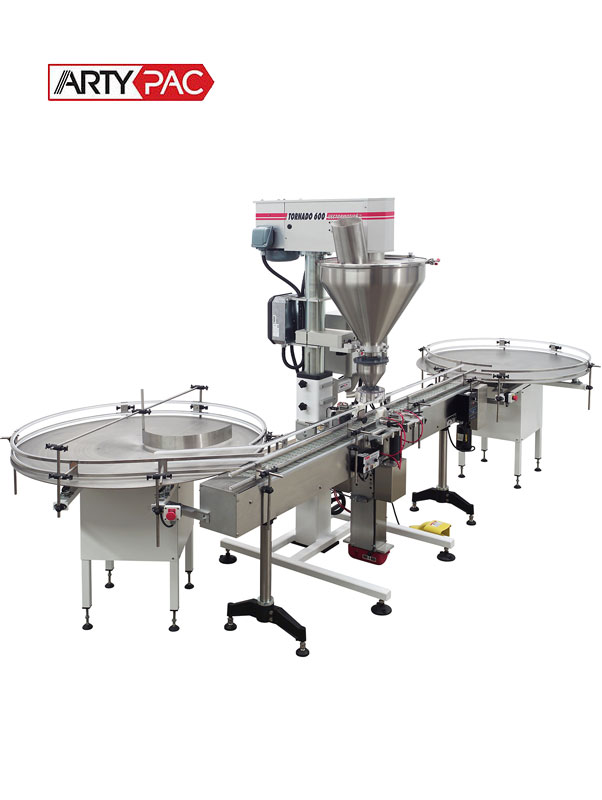

| Conveyors and turn tables. |
