Arty 80V Coffee Applications
Fully Automated High Speed Vertical form-fill-and-seal
Innovative, the ARTY 80V, is a vertical form-fill-and-seal machine that incorporates a new technology which makes it one of the most easy-to-use and reliable machine on the market.
We love coffee!!!
We have been making coffee packaging Machines for a very long time and it has become somewhat of our specialty. From frac-packs to block buttom retail bags we manufacture the machines you need.
- Bag-in-bag or in room service
- Degassing Valve Applicators
- Gas Flushing
- Grounds or whole beans
- All functions are PLC controlled
- Equipped with a user friendly touch screen interface
- Frequency inverter and three-phase motor
- Separate control panel mounted
- Durable electrostatic powdered paint and stainless steel contact parts
- Full stainless steel version available
- Numerous attachments available (square bottom bags, gussets, heated hole punch, print registration etc.).
- Complete line integration
- Complete set-up or changeover in just minutes and with no tools necessary.

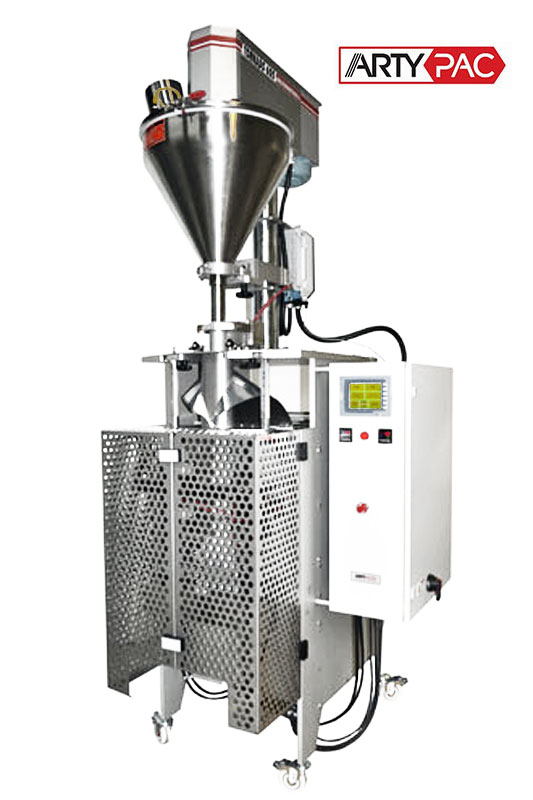

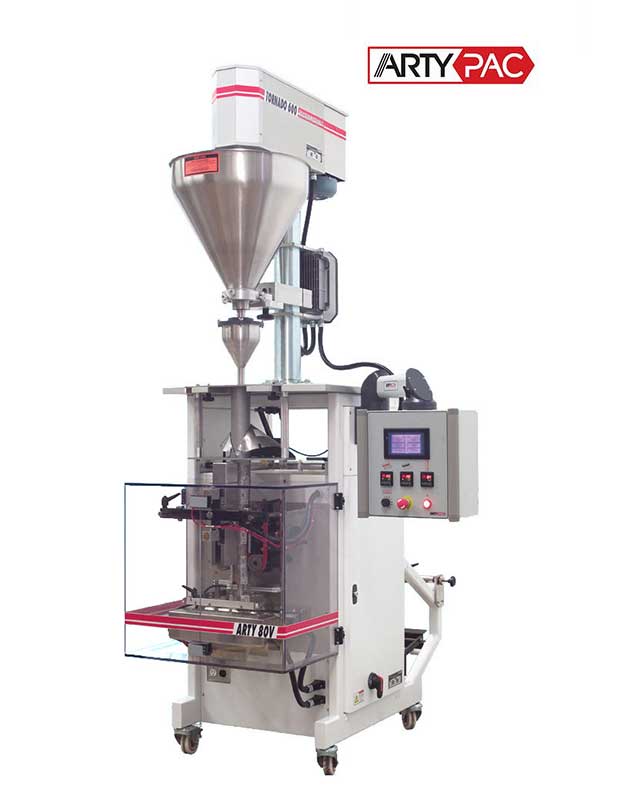

The 80V Vertical form-fill-and-seal
Check out the video which shows how the ARTY 80V is the most easy-to-use and reliable machine on the market.
Standard Features
| PLC controller. |
| 4x20 backlit LCD display, 19 membrane keys, memory for 99 recipes. |
| Fault alarm shut down and message display. |
| Digital PID temperature controllers. |
| VECTORMOTION™ direct-drive system driving two side belts to advance the film. |
| Floating, self-centering pulling belts system, adjustable by means of a hand wheel. |
| Articulated control panel. |
| Programmable bag lengths. |
| Perfectly integrated TORNADO600 Auger System |
| Programmable bag counters. |
| Motorized reel holder. |
| Quick changeover and set-up without tools. |
| Lever operated sealing jaws, by means of a pneumatic rotary cylinder. |
| Jaws obstruction detection with automatic release and immediate machine stop. |
| Polycarbonate safety guards with interlock safety switches. |
| Solid tubular steel construction, protected with white powdered electrostatic baked paint. |
Optional Features
| Print registration system. |
| Inclined exit belted conveyor. |
| Collating turntable. |
| Second reel holder. |
| Punching displaying holes. |
| Opening notch punch. |
| Gusseting attachment. |
| Flat bottom bag attachment. |
| Gas flush. |
| Static eliminators. |
| Date coders and inline printers. |
