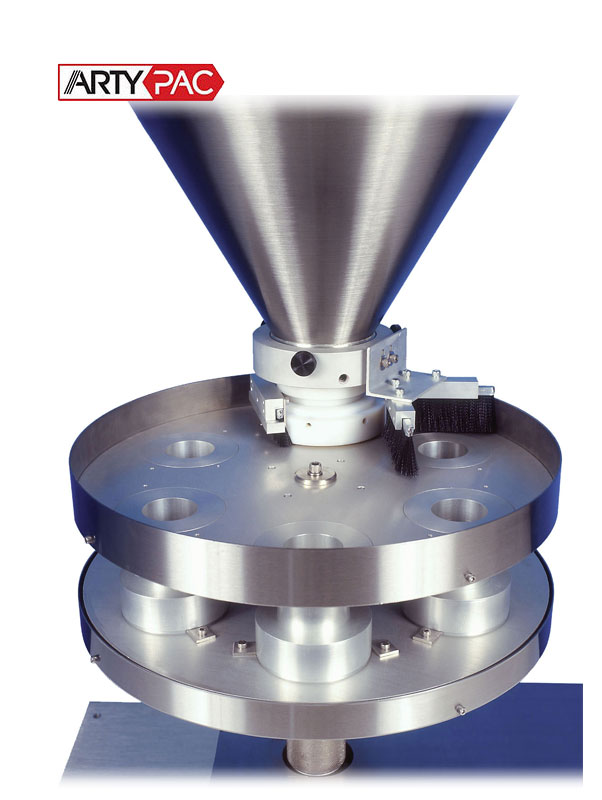

Rotor 60

Volumetric Cup Fillers

The ROTOR 60 volumetric cup-fillers is the economical way to feed most of the granular and powdered products of all natures.

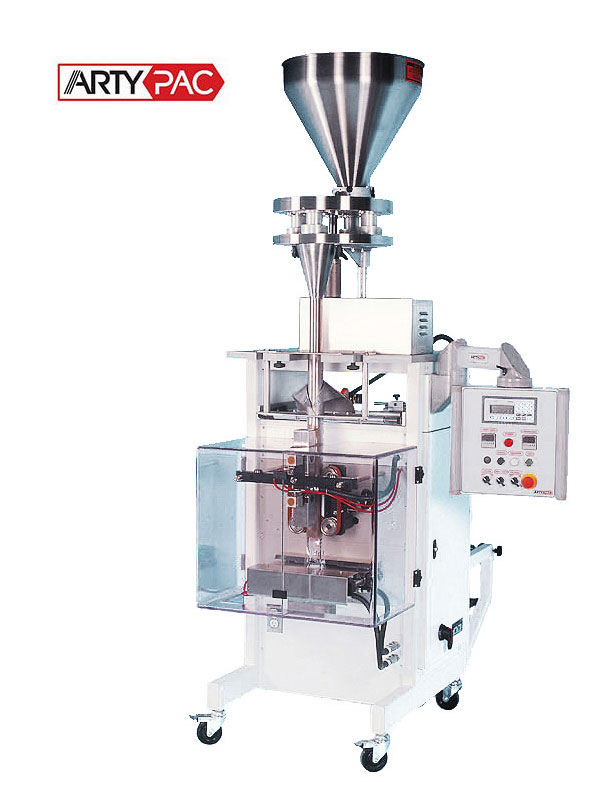

It can be used as a stand-alone unit or integrated to many packaging systems such as: horizontal and vertical form-fill-seal machines; cartooning machines; conveyors etc.

Volume adjustable
Fast cleaning.
Operation can be set to manual, semi-automatic or automatic
High performance VECTORMOTION™ drive system
Durable stainless steel contact parts
Programmable controller
User-friendly operator interface
Complete line integration

Standard Features

PLC controller.

VECTORMOTION™ direct-drive system driving two side belts to advance the film.

Articulated control panel.

Programmable bag counters.

Motorized reel holder.

Quick changeover and set-up without tools.

Volume adjustable by means of a threaded collar.

Solid tubular steel construction, protected with white powdered electrostatic baked paint.

Control panel is a dust proof enclosure containing the programmable controller and user-friendly operator interface mounted on a convenient swivel arm.

Intermittent motion using high performance VECTORMOTION™ drive system.

It provides excellent accuracy filling coffee beans, rice, round candies and delivers up to 80 cycles per minute.

Technical Data

Hopper Stainless steel	22" (558mm)
Capacity	16 gallons (60 liters)
Speeds up to	75 cycles per minute
Power supply	220V, 10A, 50-60 Hz, single phase
