Check Weighers

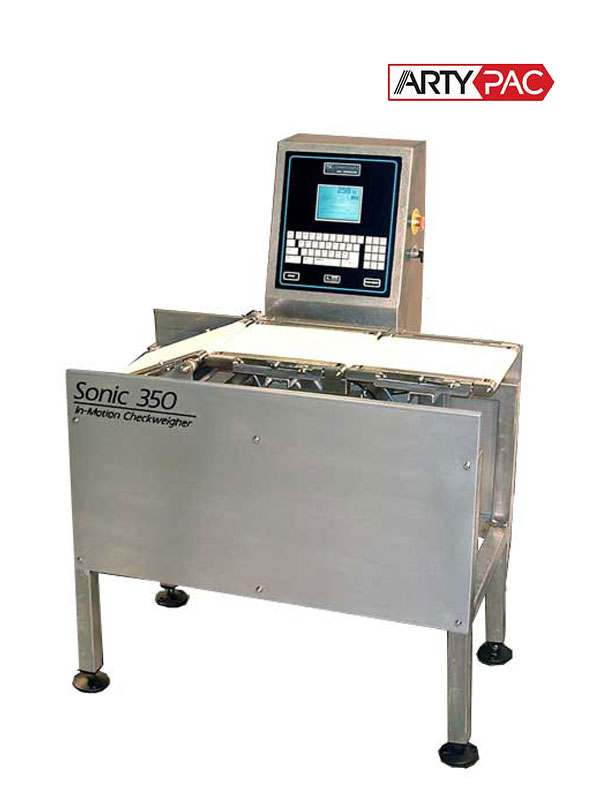

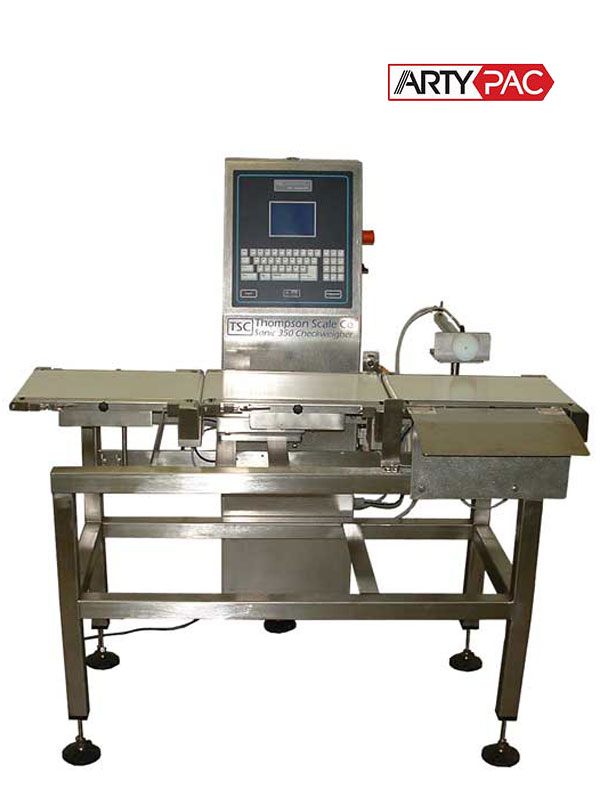

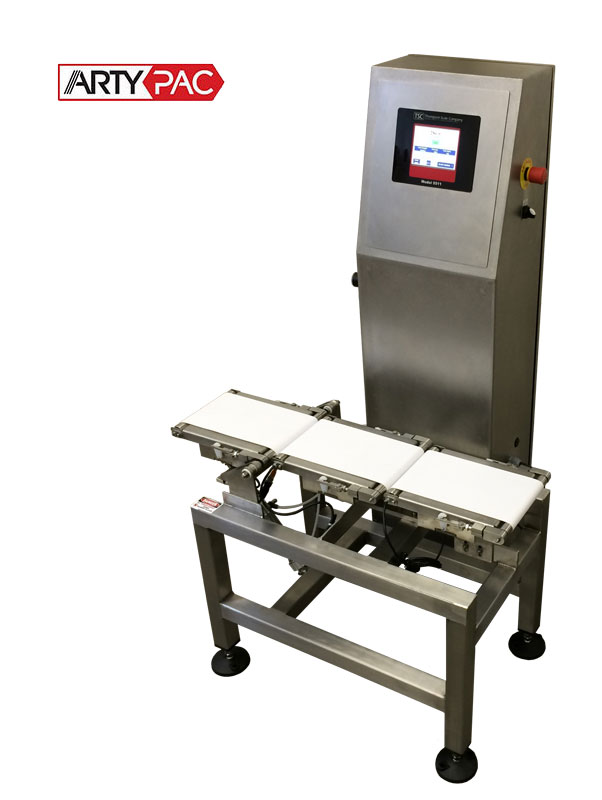

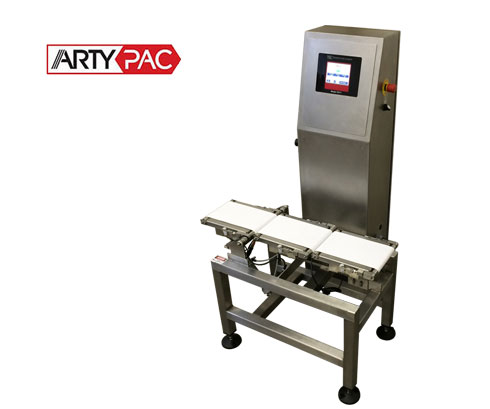

Sonic 350 In-Motion CHECKWEIGHERS with 3-belt conveyor design and drop-nose style reject.

This in-line checkweigher weighs products of virtually any shape or size, up to 18 inches in length with accuracies of up to +/- 0.1 gram.

Works well with products in flexible bags or pouches flow-wrapped trays, rejecting off-weight product without changing the direction of flow

Food-grade conveyor belts.
Easy to use
Self-diagnostics
Touch-Screen Interface
High load cell sample rate/conversion
Selectable display divisions
Calibration audit trail for compliance requirements
Works with semi-rigid or flexible products of any shape or size

Standard Features

Capacities from 10g to 10kg.

Selectable resolution.

Complete self-diagnostics with error description on screen.

5 pole low-pass filter.

High load cell sample rate and A/D conversion rate.

Hardware and program adjustable filtering.

Accuracy as great as ± 0.1% @ 2 Sigma.

Calibration audit trail for compliance requirements.

Multilanguage possibilities.

Optional Features

Statistical Process Reporting (STPR) package to prints unit weights and reports on A4 format for analysis.

Sonic 350 In-Motion CHECKWEIGHERS is a belt conveyer checkweigher that meets the demands of production line quality control for products weighing between 10g to 10kg.

It offers quick and simple operation with easy changeover from product to product.

Technical Data

Conveyor speeds up to	250' (76m) per minute
Conveyor rolls	1" diameter
Production rates up to	200 units per minute
Accuracy	± 0.1% @ 2 Sigma (product dependent)
Repeatability	± 0.05% @ 2 Sigma (product dependent)
Product selection up to	50
Reject time	.05 to 60 seconds
