Arty 130V Hot Liquid Filling
Fully Automated High Speed Vertical form-fill-and-seal

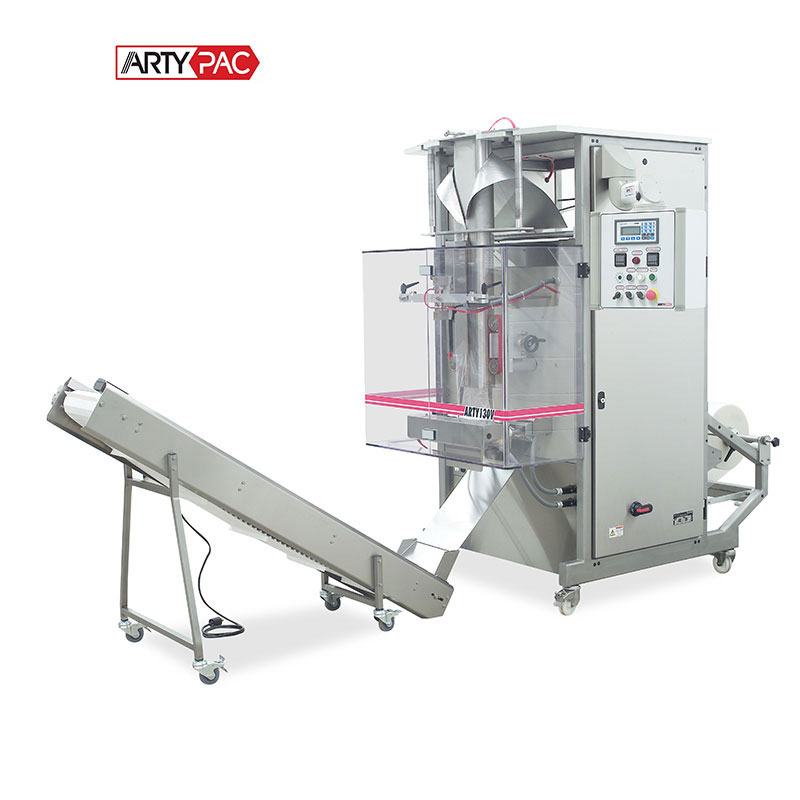

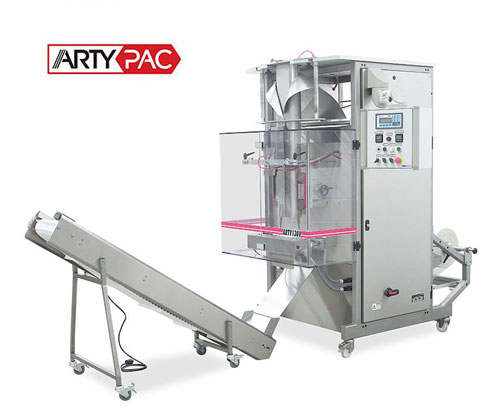

Innovative, the ARTY 130V, is a vertical form-fill-and-seal machine that incorporates a new technology which makes it one of the most easy-to-use and reliable machine on the market.
It is designed to package hot or cold liquids, coffee, juices, pasta sauces, viscous products, and many more.
It works well with single or multiple linear scales, combination scales, liquid fillers, volumetric or auger fillers, and other special fillers.
- All functions are PLC controlled
- Equipped with a user friendly touch screen interface
- Frequency inverter and three-phase motor
- Separate control panel mounted
- Durable electrostatic powdered paint and stainless steel contact parts
- Full stainless steel version available
- Numerous attachments available (square bottom bags, gussets, heated hole punch, print registration etc.).
- Complete line integration
- Complete set-up or changeover in just minutes and with no tools necessary.
The 130V Vertical form-fill-and-seal
Check out the video which shows how the ARTY 130V is the most easy-to-use and reliable machine on the market.
Standard Features
| PLC controller. |
| 4x20 backlit LCD display, 19 membrane keys, memory for 99 recipes. |
| Fault alarm shut down and message display. |
| Digital PID temperature controllers. |
| VECTORMOTION™ direct-drive system driving two side belts to advance the film. |
| Floating, self-centering pulling belts system, adjustable by means of a hand wheel. |
| Articulated control panel. |
| Programmable bag lengths. |
| Programmable bag counters. |
| Motorized reel holder. |
| Quick changeover and set-up without tools. |
| Lever operated sealing jaws, by means of a pneumatic rotary cylinder. |
| Jaws obstruction detection with automatic release and immediate machine stop. |
| Polycarbonate safety guards with interlock safety switches. |
| Solid tubular steel construction, protected with white powdered electrostatic baked paint. |
Optional Features
| Print registration system. |
| Inclined exit belted conveyor. |
| Collating turntable. |
| Second reel holder. |
| Punching displaying holes. |
| Opening notch punch. |
| Gusseting attachment. |
| Flat bottom bag attachment. |
| Gas flush. |
| Static eliminators. |
| Date coders and inline printers. |
